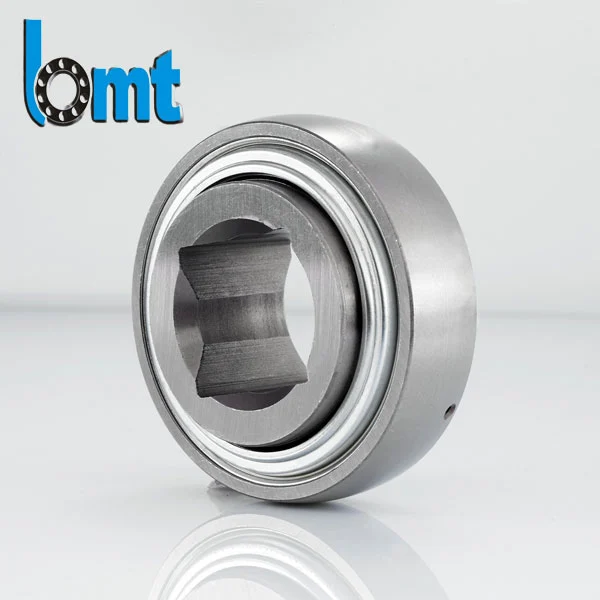

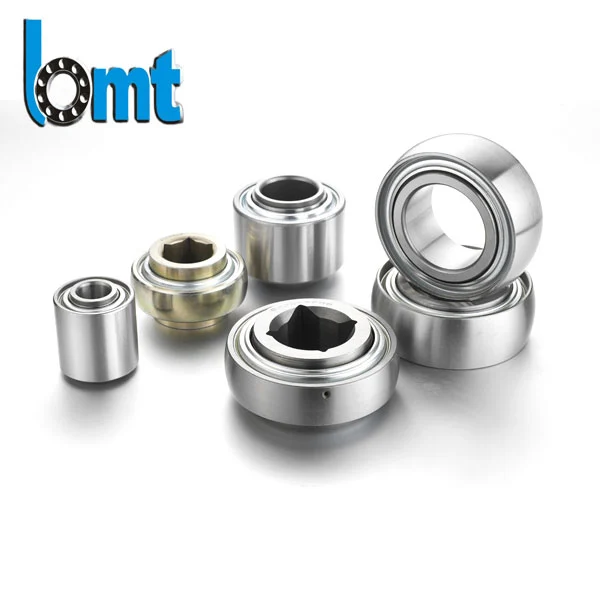

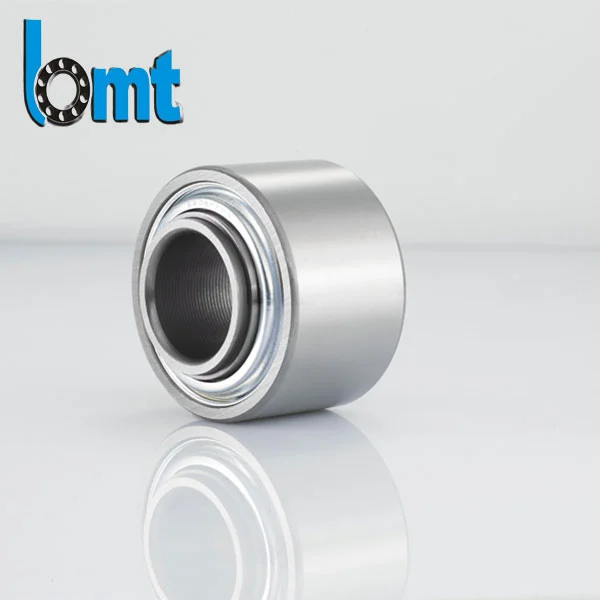

বিয়ারিং ঢোকান
ইনসার্ট বিয়ারিং, যা প্রশস্ত অভ্যন্তরীণ রিং বিয়ারিং নামেও পরিচিত, বিশেষভাবে ডিজাইন করা বিয়ারিং ইউনিট যা হাউজড বিয়ারিং অ্যাপ্লিকেশনগুলিতে ব্যবহৃত হয়। এই বিয়ারিংগুলি প্রাক-লুব্রিকেটেড এবং সিল করা হয়, এগুলি ইনস্টল এবং বজায় রাখা সহজ করে তোলে। এগুলি সাধারণত এমন অ্যাপ্লিকেশনগুলিতে ব্যবহৃত হয় যেখানে প্রান্তিককরণ বা পুনরায় তৈলাক্তকরণ কঠিন। বিএমটি কোম্পানি বিভিন্ন ধরনের শিল্পের চাহিদা মেটাতে উচ্চ কার্যক্ষমতা, নির্ভুলতা মেশিনিং এবং শক্তিশালী ডিজাইন সহ বিয়ারিংয়ের সম্পূর্ণ পরিসর সরবরাহ করে।
পণ্যের বৈশিষ্ট্য
সন্নিবেশ বিয়ারিংগুলির একটি গোলাকার বাইরের পৃষ্ঠ রয়েছে, যা তাদেরকে হাউজিং এর মধ্যে স্ব-সারিবদ্ধ করতে দেয়, ভুল ত্রুটির জন্য ক্ষতিপূরণ দেয়। তারা সাধারণত শ্যাফ্ট লক করার জন্য স্ক্রু, উদ্ভট লকিং কলার বা টেপারড অ্যাডাপ্টার সেট করে থাকে। বিএমটি কোম্পানির বিয়ারিংগুলি দূষিত রোধ করতে এবং তৈলাক্তকরণ ধরে রাখতে উচ্চ-মানের সিল সহ আসে, এমনকি চাহিদাপূর্ণ পরিবেশেও দীর্ঘ পরিষেবা জীবন বজায় রাখা নিশ্চিত করে।
প্রযুক্তিগত পরামিতি

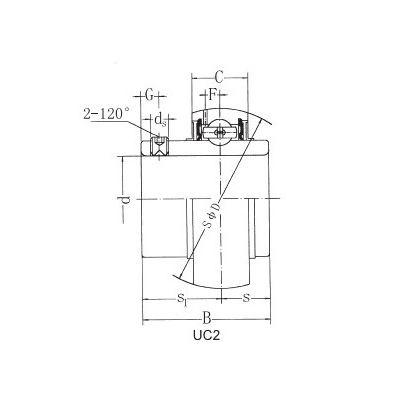

| বিয়ারিং ঢোকান:ইউসি সিরিজ | |||||||||||
| বিয়ারিং নং | খাদ ব্যাস ঘ | মাত্রা(মিমি) | ডায়নামিক লোড রেটিং এন | স্ট্যাটিক লোড রেটিং N | |||||||
| মিমি | D | B | C | S | S1 | G | F | ডিএস | |||
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC201-8 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC202-9 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC202-10 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x0.75 | 12800 | 6650 |
| UC203-11 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | M6x 0.75 | 12800 | 6650 |
| UC204-12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | M6x0.75 | 14000 | 7850 |
| UC205-13 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-14 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-15 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC205-16 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | M6x0.75 | 19500 | 11300 |
| UC206-17 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-18 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-19 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC206-20 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | M8x1 | 25700 | 15300 |
| UC207-20 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-21 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-22 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC207-23 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | 5.7 | 5/16-24UNF | 25700 | 15300 | |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | M8x1 | 29500 | 18100 |
| UC208-24 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| UC208-25 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | M8x1 | 31600 | 20600 |
| UC209-26 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC209-27 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC209-28 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | M10x1 | 35000 | 23200 |
| UC210-29 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24UNF | 35000 | 23200 | |
| UC210-30 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24UNF | 35000 | 23200 | |
| UC210-31 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24UNF | 35000 | 23200 | |
| UC210-32 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | 6.5 | 3/8-24UNF | 35000 | 23200 | |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | M10x1 | 43500 | 29200 |
| UC211-32 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24UNF | 43500 | 29200 | |
| UC211-33 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24UNF | 43500 | 29200 | |
| UC211-34 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24UNF | 43500 | 29200 | |
| UC211-35 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 7 | 3/8-24UNF | 43500 | 29200 | |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | M10x1 | 47700 | 32900 |
| UC212-36 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| UC212-37 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| UC212-38 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| UC212-39 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | M10X1 | 57500 | 40000 |
| UC213-40 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | 3/8-24UNF | 57500 | 40000 | |
| UC213-41 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 8.5 | 3/8-24UNF | 57500 | 40000 | |
| UC214 | 70 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | M12x1.5 | 60800 | 45000 |
| UC214-42 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20UNF | 60800 | 45000 | |
| UC214-43 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20UNF | 60800 | 45000 | |
| UC214-44 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | 8.9 | 7/16-20UNF | 60800 | 45000 | |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | M12X1.5 | 66000 | 49500 |
| UC215-45 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20UNF | 66000 | 49500 | |
| UC215-46 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20UNF | 66000 | 49500 | |
| UC215-47 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20UNF | 66000 | 49500 | |
| UC215-48 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 9.2 | 7/16-20UNF | 66000 | 49500 | |
| UC216 | 80 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | M12x1.5 | 71500 | 54200 |
| UC216-49 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20UNF | 71500 | 54200 | |
| UC216-50 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20UNF | 71500 | 54200 | |
| UC216-51 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | 9.5 | 7/16-20UNF | 71500 | 54200 | |
| UC217 | 85 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | M12x1.5 | 83500 | 64000 |
| UC217-52 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20UNF | 83500 | 64000 | |
| UC217-53 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20UNF | 83500 | 64000 | |
| UC217-55 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | 10.2 | 7/16-20UNF | 83500 | 64000 | |
| UC218 | 90 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | 11.2 | M12x1.5 | 96000 | 71500 |
| UC218-56 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | 11.2 | 1/2-20UNF | 96000 | 71500 | |
| UC305 | 25 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | M61 | 22400 | 11500 |
| UC305-13 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-14 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-15 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| UC305-16 | 62 | 38 | 20 | 15 | 23 | 6 | 5.4 | 1/4-28UNF | 22400 | 11500 | |
| C306 | 30 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | M6X1 | 26700 | 15000 |
| UC306-17 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC306-18 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC306-19 | 72 | 43 | 23 | 17 | 26 | 6 | 5.7 | 1/4-28UNF | 26700 | 15000 | |
| UC307 | 35 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | M8X1 | 33500 | 19100 |
| UC307-20 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-21 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-22 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| UC307-23 | 80 | 48 | 25 | 19 | 29 | 8 | 6.2 | 5/16-24UNF | 33500 | 19100 | |
| C308 | 40 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | M10X1 | 40500 | 24000 |
| UC308-24 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | 3/8-24UNF | 40500 | 24000 | |
| UC308-25 | 90 | 52 | 27 | 19 | 33 | 10 | 7 | 3/8-24UNF | 40500 | 24000 | |
| UC309 | 45 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | M10X1 | 52800 | 31800 |
| UC309-26 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24UNF | 52800 | 31800 | |
| UC309-27 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24UNF | 52800 | 31800 | |
| UC309-28 | 100 | 57 | 30 | 22 | 35 | 10 | 7.8 | 3/8-24UNF | 52800 | 31800 | |
| UC310 | 50 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | M12X1.5 | 61800 | 37900 |
| UC310-29 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20UNF | 61800 | 37900 | |
| UC310-30 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20UNF | 61800 | 37900 | |
| UC310-31 | 110 | 61 | 32 | 22 | 39 | 12 | 8.5 | 1/2-20UNF | 61800 | 37900 | |
| UC311 | 55 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | M12X1.5 | 71500 | 44700 |
| UC311-32 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20UNF | 71500 | 44700 | |
| UC311-33 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20UNF | 71500 | 44700 | |
| UC311-34 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20UNF | 71500 | 44700 | |
| UC311-35 | 120 | 66 | 34 | 25 | 41 | 12 | 9.2 | 1/2-20UNF | 71500 | 44700 | |
| UC312 | 60 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | M12X1.5 | 81700 | 51800 |
| UC312-36 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20UNF | 81700 | 51800 | |
| UC312-37 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20UNF | 81700 | 51800 | |
| UC312-38 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20UNF | 81700 | 51800 | |
| UC312-39 | 130 | 71 | 36 | 26 | 45 | 12 | 9.8 | 1/2-20UNF | 81700 | 51800 | |
| UC313 | 65 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | M12X1.5 | 92500 | 60000 |
| UC313-40 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | 1/2-20UNF | 92500 | 60000 | |
| UC313-41 | 140 | 75 | 38 | 30 | 45 | 12 | 10.5 | 1/2-20UNF | 92500 | 60000 | |
| UC314 | 70 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | M12X1.5 | 104500 | 68000 |
| UC314-42 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20UNF | 104500 | 68000 | |
| UC314-43 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20UNF | 104500 | 68000 | |
| UC314-44 | 150 | 78 | 40 | 33 | 45 | 12 | 11.1 | 1/2-20UNF | 104500 | 68000 | |
| UC315 | 75 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | M14X1.5 | 113000 | 77000 |
| UC315-45 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18UNF | 113000 | 77000 | |
| UC315-46 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18UNF | 113000 | 77000 | |
| UC315-47 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18UNF | 113000 | 77000 | |
| UC315-48 | 160 | 82 | 42 | 32 | 50 | 14 | 11.8 | 9/16-18UNF | 113000 | 77000 | |
| UC316 | 80 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | M14X1.5 | 123000 | 86500 |
| UC316-49 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18UNF | 123000 | 86500 | |
| UC316-50 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18UNF | 123000 | 86500 | |
| UC316-51 | 170 | 86 | 44 | 34 | 52 | 14 | 12.5 | 9/16-18UNF | 123000 | 86500 | |
| UC317 | 85 | 180 | 96 | 46 | 40 | 56 | 16 | 13.1 | M16X1.5 | 132600 | 96500 |
| UC318 | 90 | 190 | 96 | 48 | 40 | 56 | 16 | 13.8 | M16X1.5 | 144000 | 108000 |
| UC319 | 95 | 200 | 103 | 50 | 41 | 62 | 16 | 14.7 | M16X1.5 | 156600 | 122000 |
| UC320 | 100 | 215 | 108 | 54 | 42 | 66 | 18 | 15.7 | M18X1.5 | 17300 | 141000 |
| UC322 | 110 | 240 | 117 | 60 | 46 | 71 | 18 | 17.7 | M18X1.5 | 205000 | 179000 |
| UC324 | 120 | 260 | 126 | 64 | 51 | 75 | 18 | 19 | M18x1.5 | 227000 | 207000 |
| UC326 | 130 | 280 | 135 | 68 | 54 | 81 | 20 | 20 | M20x1.5 | 253000 | 241000 |
| UC328 | 140 | 300 | 145 | 72 | 59 | 86 | 20 | 22 | M20x1.5 | 274000 | 272000 |
| ঢোকান বিয়ারিং: UCX | ||||||||||||
| বিয়ারিং নং | খাদ ব্যাস ঘ | মাত্রা(মিমি) | ডায়নামিক লোড রেটিং এন | স্ট্যাটিক লোড রেটিং N | ||||||||
| মিমি | D | দ্বি | হও | r | n | m | G | ডিএস | T | |||
| UCX05 | 25 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | M6X0.75 | 5 | 1540 | 1020 |
| UCX05-13 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-14 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-15 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX05-16 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | 1/4-28 UNF | 5 | 1540 | 1020 | |
| UCX06 | 30 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | M8X 1 | 5.7 | 2030 | 1400 |
| UCX06-17 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 ইউএনএফ | 5.7 | 2030 | 1400 | |
| UCX06-18 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 ইউএনএফ | 5.7 | 2030 | 1400 | |
| UCX06-19 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 ইউএনএফ | 5.7 | 2030 | 1400 | |
| UCX06-20 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | 5/16-24 ইউএনএফ | 5.7 | 2030 | 1400 | |
| UCX07 | 35 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | M8X 1 | 6.2 | 2300 | 1600 |
| UCX07-20 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.2 | 2300 | 1600 | |
| UCX07-21 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.2 | 2300 | 1600 | |
| UCX07-22 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.2 | 2300 | 1600 | |
| UCX07-23 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.2 | 2300 | 1600 | |
| UCX08 | 40 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | M8X 1 | 6.4 | 2560 | 1810 |
| UCX08-24 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.4 | 2560 | 1810 | |
| UCX08-25 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | 5/16-24 ইউএনএফ | 6.4 | 2560 | 1810 | |
| UCX09 | 45 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | M10X1। 25 | 6.5 | 2750 | 2020 |
| UCX09-26 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX09-27 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX09-28 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | 3/8-24 UNF | 6.5 | 2750 | 2020 | |
| UCX10 | 50 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | M10X1। 25 | 7 | 3400 | 2550 |
| UCX10-29 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-30 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-31 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX10-32 | 100 | 55.6 | 25 | 2.5 | 22.2 | 33.4 | 10 | 3/8-24 UNF | 7 | 3400 | 2550 | |
| UCX11 | 55 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | M10X1। 25 | 7.6 | 4100 | 3150 |
| UCX11-32 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-33 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-34 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX11-35 | 110 | 65.1 | 27 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 7.6 | 4100 | 3150 | |
| UCX12 | 60 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | M10X1। 25 | 8.9 | 4480 | 3470 |
| UCX12-36 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-37 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-38 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX12-39 | 120 | 65.1 | 28 | 2.5 | 25.4 | 39.7 | 10 | 3/8-24 UNF | 8.9 | 4480 | 3470 | |
| UCX13 | 65 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | M12X1। 5 | 8.9 | 4870 | 3810 |
| UCX13-40 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | 7/16-20 UNF | 8.9 | 4870 | 3810 | |
| UCX13-41 | 125 | 74.6 | 30 | 2.5 | 30.2 | 44.4 | 12 | 7/16-20 UNF | 8.9 | 4870 | 3810 | |
| UCX14 | 70 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | M12X 1। 5 | 8.9 | 5200 | 4200 |
| UCX14-42 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX14-43 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX14-44 | 130 | 77.8 | 32 | 2.5 | 33.3 | 44.5 | 12 | 7/16-20 UNF | 8.9 | 5200 | 4200 | |
| UCX15 | 75 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | M12X 1। 5 | 9.6 | 5700 | 4550 |
| UCX15-45 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-46 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-47 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX15-48 | 140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 | 7/16-20 UNF | 9.6 | 5700 | 4550 | |
| UCX16 | 80 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 | M12X1। 5 | 10 | 6600 | 5320 |
| UCX16-50 | 150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 | 7/16-20 UNF | 10 | 6600 | 5320 | |
| UCX17 | 85 | 160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 | M12X1। 5 | 11 | 7550 | 6170 |
| UCX17-52 | 160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 | 7/16-20 UNF | 11 | 7550 | 6170 | |
| UCX18 | 90 | 170 | 104 | 38 | 3 | 42.9 | 61.1 | 14 | M14X1। 5 | 11.9 | 11122 | 8449 |
| UCX18-56 | 170 | 104 | 38 | 3 | 42.9 | 61.1 | 14 | 1/2-20 UNF | 11.9 | 11122 | 8449 | |
| UCX20 | 100 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | M16x1.5 | 13 | 13570 | 10714 |
| UCX20-63 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | 5/8-18 UNF | 13 | 13570 | 10714 | |
| UCX20-64 | 190 | 117.5 | 42 | 3.5 | 49.2 | 68.3 | 16 | 5/8-18 UNF | 13 | 13570 | 10714 | |
| ঢোকান বিয়ারিং: HC | |||||||||||||
| বিয়ারিং নং | খাদ দিয়া ঘ | মাত্রা (মিমি) | ডায়নামি | স্থির | |||||||||
| (মিমি) | D | B1 | B | C | S | G | B5 | d3 | F | ডিএস | গ লোড রেটিং এন | লোড রেটিং এন | |
| HC201 | 12 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC201-8 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC202 | 15 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC202-9 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC202-10 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC203 | 17 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| HC203-11 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC204 | 20 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | M6x1 | 12800 | 6650 |
| Hc204-12 | 47 | 43.7 | 34.2 | 17 | 17.1 | 4.8 | 13.5 | 33.3 | 3.7 | 1/4-28UNF | 12800 | 6650 | |
| HC205 | 25 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | M6 x1 | 14000 | 7850 |
| HC205-13 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-14 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-15 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC205-16 | 52 | 44.4 | 34.9 | 17 | 17.5 | 4.8 | 13.5 | 38.1 | 3.9 | 1/4-28UNF | 14000 | 7850 | |
| HC206 | 30 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | M8 x1 | 19510 | 11300 |
| HC206-17 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-18 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-19 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC206-20 | 62 | 48.4 | 36.5 | 19 | 18.3 | 6 | 15.9 | 44.5 | 5 | 5/16-24UNF | 19510 | 11300 | |
| HC207 | 35 | 72 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | M8 x1 | 25700 | 15300 |
| HC207-20 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-21 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-22 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC207-23 | 51.1 | 37.6 | 20 | 18.8 | 6.8 | 17.5 | 55.6 | 5.7 | 5/16-24UNF | 25700 | 15300 | ||
| HC208 | 40 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | M8 x 1 | 29500 | 18100 |
| HC208-24 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| HC208-25 | 80 | 56.3 | 42.8 | 21 | 21.4 | 6.8 | 18.3 | 60.3 | 6.2 | 5/16-24UNF | 29500 | 18100 | |
| HC209 | 45 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | M8 x1 | 31600 | 20600 |
| HC209-26 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC209-27 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC209-28 | 85 | 56.3 | 42.8 | 22 | 21.4 | 6.8 | 18.3 | 63.5 | 6.4 | 5/16-24UNF | 31600 | 20600 | |
| HC210 | 50 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | M8 x 1 | 35000 | 23200 |
| HC210-29 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-30 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-31 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC210-32 | 90 | 62.7 | 49.2 | 24 | 24.6 | 6.8 | 18.3 | 69.9 | 6.5 | 5/16-24UNF | 35000 | 23200 | |
| HC211 | 55 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | M10 x1 | 43500 | 29200 |
| HC211-32 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24UNF | 43500 | 29200 | |
| HC211-33 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24UNF | 43500 | 29200 | |
| HC211-34 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24UNF | 43500 | 29200 | |
| HC211-35 | 100 | 71.4 | 55.5 | 25 | 27.8 | 8 | 20.7 | 76.2 | 7 | 3/8-24UNF | 43500 | 29200 | |
| HC212 | 60 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | M10 x1 | 47700 | 32900 |
| HC212-36 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| HC212-37 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| HC212-38 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| HC212-39 | 110 | 77.8 | 61.9 | 27 | 31 | 8 | 22.3 | 84.2 | 7.6 | 3/8-24UNF | 47700 | 32900 | |
| HC213 | 65 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | M10 x1 | 57500 | 40000 |
| HC213-40 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | 3/8-24UNF | 57500 | 40000 | |
| HC213-41 | 120 | 85.7 | 68.6 | 28 | 34.1 | 8.5 | 23.5 | 86 | 8.5 | 3/8-24UNF | 57500 | 40000 | |
| HC214 | 70 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | M10 x1 | 60800 | 45000 |
| HC214-42 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24UNF | 60800 | 45000 | |
| HC214-43 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24UNF | 60800 | 45000 | |
| HC214-44 | 125 | 85.7 | 68.6 | 29 | 34.1 | 8.5 | 23.5 | 90 | 8.9 | 3/8-24UNF | 60800 | 45000 | |
| HC215 | 75 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | M10 x1 | 66000 | 49500 |
| HC215-45 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24UNF | 66000 | 49500 | |
| HC215-46 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24UNF | 66000 | 49500 | |
| HC215-47 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24UNF | 66000 | 49500 | |
| HC215-48 | 130 | 92.1 | 75 | 30 | 37.3 | 8.5 | 23.5 | 102 | 9.2 | 3/8-24UNF | 66000 | 49500 | |
| বিয়ারিং ঢোকান: UK200, 300 | |||||||||||
| বিয়ারিং নং | খাদ ব্যাস ঘ | মাত্রা(মিমি) | ডায়নামিক লোড রেটিং এন | স্ট্যাটিক লোড রেটিং N | |||||||
| D | L | d | দ্বি | হও | T | y | w | ||||
| UK205 | 20 | 52 | 35 | 25 | 23 | 17 | 4.5 | 8 | 38 | 1100 | 710 |
| UK206 | 25 | 62 | 38 | 30 | 26 | 19 | 5.1 | 8 | 45 | 1540 | 1020 |
| UK207 | 30 | 72 | 43 | 35 | 27 | 20 | 5.8 | 9 | 52 | 2030 | 1400 |
| UK208 | 35 | 80 | 46 | 40 | 29 | 21 | 6.2 | 10 | 58 | 2300 | 1600 |
| UK209 | 40 | 85 | 50 | 45 | 30 | 22 | 6.5 | 11 | 65 | 2560 | 1810 |
| UK210 | 45 | 90 | 55 | 50 | 31 | 23 | 6.5 | 12 | 70 | 2750 | 2020 |
| UK211 | 50 | 100 | 59 | 55 | 33 | 24 | 7.3 | 12 | 75 | 3400 | 2550 |
| UK212 | 55 | 110 | 62 | 60 | 36 | 26 | 7.7 | 13 | 80 | 4100 | 3150 |
| UK213 | 60 | 120 | 65 | 65 | 38 | 27 | 8.3 | 14 | 85 | 4480 | 3470 |
| UK215 | 65 | 130 | 73 | 75 | 41 | 30 | 9.2 | 15 | 98 | 5200 | 4200 |
| UK216 | 70 | 140 | 78 | 80 | 44 | 32 | 9.6 | 17 | 105 | 5700 | 4550 |
| UK217 | 75 | 150 | 82 | 85 | 46 | 34 | 10.5 | 18 | 110 | 6600 | 5320 |
| UK218 | 80 | 160 | 86 | 90 | 49 | 36 | 11.1 | 18 | 120 | 7550 | 6170 |
| UK305 | 20 | 62 | 35 | 25 | 26 | 21 | 6.1 | 8 | 38 | 2170 | 1120 |
| UK306 | 25 | 72 | 38 | 30 | 29 | 23 | 6.7 | 8 | 45 | 2730 | 1530 |
| UK307 | 30 | 80 | 43 | 35 | 31 | 25 | 7.4 | 9 | 52 | 3400 | 1960 |
| UK308 | 35 | 90 | 46 | 40 | 34 | 27 | 8.2 | 10 | 58 | 4150 | 2440 |
| UK309 | 40 | 100 | 50 | 45 | 37 | 30 | 9 | 11 | 65 | 5250 | 3000 |
| UK310 | 45 | 110 | 55 | 50 | 40 | 32 | 10 | 12 | 70 | 6300 | 3900 |
| UK311 | 50 | 120 | 59 | 55 | 43 | 34 | 10.7 | 12 | 75 | 7300 | 4600 |
| UK312 | 55 | 130 | 62 | 60 | 46 | 36 | 11.5 | 13 | 80 | 8300 | 5300 |
| UK313 | 60 | 140 | 65 | 65 | 48 | 38 | 12.2 | 14 | 85 | 9450 | 6100 |
| UK315 | 65 | 160 | 73 | 75 | 54 | 42 | 13.8 | 15 | 98 | 11600 | 7800 |
| UK316 | 70 | 170 | 78 | 80 | 57 | 44 | 14.5 | 17 | 105 | 12500 | 8800 |
| UK317 | 75 | 180 | 82 | 85 | 60 | 46 | 15 | 18 | 110 | 13500 | 9800 |
| UK318 | 80 | 190 | 86 | 90 | 63 | 48 | 15.9 | 18 | 120 | 14600 | 10900 |
| UK319 | 85 | 200 | 90 | 95 | 66 | 50 | 16.7 | 19 | 125 | 15600 | 12100 |
| UK320 | 90 | 215 | 97 | 100 | 72 | 54 | 18 | 20 | 130 | 17700 | 14300 |
| UK322 | 100 | 240 | 105 | 110 | 80 | 60 | 21 | 21 | 145 | 20900 | 18200 |
| UK324 | 110 | 260 | 112 | 120 | 86 | 64 | 22 | 22 | 155 | 21100 | 18900 |
| UK326 | 115 | 280 | 121 | 130 | 92 | 68 | 23 | 23 | 165 | 23400 | 21900 |
| UK328 | 125 | 300 | 131 | 140 | 98 | 73 | 25 | 24 | 180 | 26000 | 25100 |
| বিয়ারিং ঢোকান: ইন | ||||||||||||
| বিয়ারিং নং | খাদ দিয়া | মাত্রা মিমি ইন. | ডায়নামিক লোড রেটিং এন | স্ট্যাটিক লোড রেটিং N | ||||||||
| মিমি | D | B1 | B | C | S | G | B5 | d3 | ডিএস | |||
| SA201 | 12 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x 0.75 | 9600 | 4600 |
| SA201-8 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA202 | 15 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x0.75 | 9600 | 4600 |
| SA202-9 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| SA202-10 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| এসএ203 | 17 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | M6x 0.75 | 9600 | 4600 |
| SA203-11 | 40 | 28.6 | 19.1 | 12 | 6 | 5 | 13.5 | 28.6 | 1/4-28UNF | 9600 | 4600 | |
| এসএ204 | 20 | 47 | 29.5 | 20 | 14 | 7.5 | 5 | 13.5 | 33.3 | M6x 0.75 | 12800 | 6650 |
| SA204-12 | 47 | 29.5 | 20 | 14 | 7.5 | 5 | 13.5 | 33.3 | 1/4-28UNF | 12800 | 6650 | |
| এসএ205 | 25 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | M6x0.75 | 14000 | 7850 |
| SA205-13 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-14 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-15 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| SA205-16 | 52 | 30.5 | 21 | 15 | 7.5 | 5 | 13.5 | 38.1 | 1/4-28UNF | 14000 | 7850 | |
| এসএ206 | 30 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | M8x1 | 19500 | 11300 |
| SA206-17 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-18 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-19 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| SA206-20 | 62 | 33.9 | 22 | 16 | 8 | 6 | 15.9 | 44.5 | 5/16-24UNF | 19500 | 11300 | |
| এসএ207 | 35 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | M8x1 | 25700 | 15300 |
| SA207-20 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-21 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-22 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| SA207-23 | 72 | 36.5 | 23 | 17 | 8.5 | 6.5 | 17.5 | 55.6 | 5/16-24UNF | 25700 | 15300 | |
| এসএ208 | 40 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | M8x1 | 29500 | 18100 |
| SA208-24 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | 5/16-24UNF | 29500 | 18100 | |
| SA208-25 | 80 | 40.5 | 27 | 18 | 9 | 6.5 | 18.3 | 60.3 | 5/16-24UNF | 29500 | 18100 | |
| এসএ209 | 45 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | M8x1 | 31600 | 20600 |
| SA209-26 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA209-27 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA209-28 | 85 | 43.7 | 30.2 | 19 | 11 | 6.8 | 18.3 | 63.5 | 5/16-24UNF | 31600 | 20600 | |
| SA210 | 50 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | M8x1 | 35000 | 23200 |
| SA210-29 | 50 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | M8x1 | 35000 | 23200 |
| SA210-30 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| SA210-31 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| SA210-32 | 90 | 43.7 | 30.2 | 20 | 11 | 6.5 | 18.3 | 69.9 | 5/16-24UNF | 35000 | 23200 | |
| এসএ211 | 55 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | M8x1 | 43500 | 29200 |
| SA211-32 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | M8x1 | 43500 | 29200 | |
| SA211-33 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24UNF | 43500 | 29200 | |
| SA211-34 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24UNF | 43500 | 29200 | |
| SA211-35 | 100 | 48.4 | 32.4 | 21 | 12 | 8 | 20.7 | 76.2 | 3/8-24UNF | 43500 | 29200 | |
| SA212 | 60 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | M10x1.25 | 47700 | 32900 |
| SA212-36 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-37 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-38 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| SA212-39 | 110 | 53.1 | 37.2 | 22 | 13.5 | 8 | 22.3 | 84.2 | 3/8 -24UNF | 47700 | 32900 | |
| বিয়ারিং ঢোকান:এসবি | ||||||||||
| বিয়ারিং নং | খাদ দিয়া ঘ | মাত্রা (মিমি) | গতিশীল | স্থির | ||||||
| (মিমি) | D | B | C | S | S1 | G | ডিএস | লোড রেটিং এন | লোড রেটিং এন | |
| SB201 | 12 | 40 | 22 | 12 | 6 | 16 | 4.5 | M50.8 | 9600 | 4600 |
| SB201-8 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32UF | 9600 | 4600 | |
| SB202 | 15 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5 x 0.8 | 9600 | 4600 |
| SB202-9 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32UF | 9600 | 4600 | |
| SB202-10 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32UF | 9600 | 4600 | |
| SB203 | 17 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5 X 0.8 | 9600 | 4600 |
| SB203-11 | 40 | 22 | 12 | 6 | 16 | 4.5 | 10-32UF | 9600 | 4600 | |
| SB204 | 20 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6x1 | 12800 | 6650 |
| SB204-12 | 47 | 25 | 14 | 7 | 18 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | M6x1 | 14000 | 7850 |
| SB205-13 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-14 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-15 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB205-16 | 52 | 27 | 15 | 7.5 | 19.5 | 5.5 | 1/4-28UNF | 14000 | 7850 | |
| SB206 | 30 | 62 | 30 | 16 | 8 | 22 | 6 | M6x1 | 19500 | 11300 |
| SB206-17 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-18 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-19 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB206-20 | 62 | 30 | 16 | 8 | 22 | 6 | 1/4-28UNF | 19500 | 11300 | |
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | M81 | 25700 | 15300 |
| SB207-20 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-21 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-22 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB207-23 | 72 | 32 | 17 | 8.5 | 23.5 | 6.5 | 5/16-24UNF | 25700 | 15300 | |
| SB208 | 40 | 80 | 34 | 18 | 9 | 25 | 7 | M8x1 | 29500 | 18100 |
| SB208-24 | 80 | 34 | 18 | 9 | 25 | 7 | 5/16-24UNF | 29500 | 18100 | |
| SB208-25 | 80 | 34 | 18 | 9 | 25 | 7 | 5/16-24UNF | 29500 | 18100 | |
| SB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | M8x1 | 31600 | 20600 |
| SB209-26 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB209-27 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB209-28 | 85 | 41.2 | 19 | 10.2 | 31 | 8.2 | 5/16-24UNF | 31600 | 20600 | |
| SB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | M10x1 | 35000 | 23200 |
| SB210-29 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24UNF | 35000 | 23200 | |
| SB210-30 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24UNF | 35000 | 23200 | |
| SB210-31 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24UNF | 35000 | 23200 | |
| SB210-32 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9.2 | 3/8-24UNF | 35000 | 23200 | |
| SB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | M10x 1 | 43500 | 29200 |
| SB211-32 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24UNF | 43500 | 29200 | |
| SB211-33 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24UNF | 43500 | 29200 | |
| SB211-34 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24UNF | 43500 | 29200 | |
| SB211-35 | 100 | 45.3 | 21 | 11.8 | 33.5 | 9.8 | 3/8-24UNF | 43500 | 29200 | |
| SB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | M10x1 | 47700 | 32900 |
| SB212-36 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-37 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-38 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| SB212-39 | 110 | 53.7 | 22 | 14.9 | 38.8 | 9.8 | 3/8 -24UNF | 47700 | 32900 | |
| ঢোকান বিয়ারিং: SER | ||||||||||||||
| বিয়ারিং নং | খাদ দিয়া ঘ | মাত্রা (মিমি) | ডায়নামিক লোড রেটিং এন | স্ট্যাটিক লোড রেটিং N | ||||||||||
| মিমি | D | B | C | S | S1 | T | F | J | P | G | ডিএস | |||
| SER201 | 12 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| SER201-8 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| SER202 | 15 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| SER202-10 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| SER203 | 17 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| SER203-11 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| Ser204 | 20 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | M6x0.75 | 12800 | 6650 |
| Ser204-12 | 47 | 31 | 16 | 12.7 | 18.3 | 1.07 | 4 | 2 | 52.5 | 4.5 | 1/4-28UNF | 12800 | 6650 | |
| SER205 | 25 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | M6x0.75 | 14000 | 7850 |
| SER205-13 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| SER205-14 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| SER205-15 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| SER205-16 | 52 | 34.9 | 19 | 14.3 | 20.6 | 1.07 | 5 | 2.4 | 57.7 | 5 | 1/4-28UNF | 14000 | 7850 | |
| SER206 | 30 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | M6x0.75 | 19500 | 11300 |
| SER206-17 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| SER206-18 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| SER206-19 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| SER206-20 | 62 | 38.1 | 22 | 15.9 | 22.2 | 1.65 | 5.5 | 3.2 | 67.5 | 5 | 1/4-28UNF | 19500 | 11300 | |
| SER207 | 35 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | M8x1 | 25700 | 15300 |
| SER207-20 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| SER207-21 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| SER207-22 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| SER207-23 | 72 | 42.9 | 24 | 17.5 | 25.4 | 1.65 | 5.5 | 3.2 | 78.4 | 6 | 5/16-24UNF | 25700 | 15300 | |
| SER208 | 40 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | M8x1 | 29500 | 18100 |
| SER208-24 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | 5/16-24UNF | 29500 | 18100 | |
| SER208-25 | 80 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 86.4 | 8 | 5/16-24UNF | 29500 | 18100 | |
| SER209 | 45 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | M8x1 | 31600 | 20600 |
| SER209-26 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| SER209-27 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| SER209-28 | 85 | 49.2 | 28 | 19 | 30.2 | 1.65 | 6 | 3.2 | 91.4 | 8 | 5/16-24UNF | 31600 | 20600 | |
| SER210 | 50 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | M10x1.25 | 35000 | 23200 |
| SER210-29 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24UNF | 35000 | 23200 | |
| SER210-30 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24UNF | 35000 | 23200 | |
| SER210-31 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24UNF | 35000 | 23200 | |
| SER210-32 | 90 | 51.6 | 28 | 19 | 32.6 | 2.41 | 7.5 | 3.2 | 96.3 | 9 | 3/8-24UNF | 35000 | 23200 | |
| SER211 | 55 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | M10x1.25 | 43500 | 29200 |
| SER211-32 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24UNF | 43500 | 29200 | |
| SER211-33 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24UNF | 43500 | 29200 | |
| SER211-34 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24UNF | 43500 | 29200 | |
| SER211-35 | 100 | 55.6 | 30 | 22.2 | 33.4 | 2.41 | 7.5 | 3.2 | 106 | 9 | 3/8-24UNF | 43500 | 29200 | |
| SER212 | 60 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | M10X1.25 | 47700 | 32900 |
| SER212-36 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24UNF | 47700 | 32900 | |
| SER212-37 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24UNF | 47700 | 32900 | |
| SER212-38 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24UNF | 47700 | 32900 | |
| SER212-39 | 110 | 65.1 | 32 | 25.4 | 39.7 | 2.41 | 7.5 | 3.28 | 116 | 10 | 3/8-24UNF | 47700 | 32900 | |
| বিয়ারিং ঢোকান: SC200 | ||||||
| বিয়ারিং নং | খাদ দিয়া ঘ | মাত্রা | বেসিক লোড রেটিং (কেজি) | বেসিক স্ট্যাট এবং লোড ইঁদুর (কেজি) | ||
| (মিমি) | ||||||
| (মিমি) | D | Be = With | ||||
| SC203 | 17 | 40 | 12 | 780 | 454 | |
| SC204 | 20 | 47 | 14 | 1010 | 630 | |
| SC205 | 25 | 52 | 15 | 1100 | 710 | |
| SC206 | 30 | 62 | 16 | 1550 | 1020 | |
| SC207 | 35 | 72 | 1 1 | 2030 | 1400 | |
| SC208 | 40 | 80 | 18 | 2300 | 1600 | |
| SC209 | 45 | 85 | 19 | 2570 | 1810 | |
| SC210 | 50 | 90 | 20 | 2760 | 2010 | |
| SC21 1 | 55 | 100 | 21 | 3400 | 2550 | |
| SC212 | 60 | 110 | 22 | 4100 | 3150 | |
| বিয়ারিং ঢোকান: 1726200, 6300 সিরিজ | ||||||
| আইটেম | আকার | বেসিক লোড রেটিং | ||||
| রাবার সীল | d | SφD | B | r মিন | ডায়নামিক ক্র (N) | স্ট্যাটিক কর্ (N) |
| 1726200-2RS | 10 | 30 | 9 | 0.6 | 5, 100 | 2, 210 |
| 1726300-2RS | 10 | 35 | 11 | 0.6 | 6, 928 | 2, 933 |
| 1726201-2RS | 12 | 32 | 10 | 0.6 | 5, 908 | 2, 635 |
| 1726301-2RS | 12 | 37 | 12 | 1 | 8, 203 | 3, 528 |
| 1726202-2RS | 15 | 35 | 11 | 0.6 | 6, 630 | 3, 188 |
| 1726302-2RS | 15 | 42 | 13 | 1 | 9, 690 | 4, 590 |
| 1726203-2RS | 17 | 40 | 12 | 0.6 | 8, 075 | 4, 038 |
| 1726303-2RS | 17 | 47 | 14 | 1 | 11, 390 | 5, 568 |
| 1726204-2RS | 20 | 47 | 14 | 1 | 10, 795 | 5, 568 |
| 1726304-2RS | 20 | 52 | 15 | 1.1 | 13, 600 | 6, 630 |
| 1726205-2RS | 25 | 52 | 15 | 1 | 11, 900 | 6, 630 |
| 1726305-2RS | 25 | 62 | 17 | 1.1 | 19, 040 | 9, 690 |
| 1726206-2RS | 30 | 62 | 16 | 1 | 16, 405 | 9, 520 |
| 1726306-2RS | 30 | 72 | 19 | 1.1 | 24, 650 | 13, 855 |
| 1726207-2RS | 35 | 72 | 17 | 1.1 | 21, 675 | 13, 005 |
| 1726307-2RS | 35 | 80 | 21 | 1.5 | 28, 475 | 16, 150 |
| 1726208-2RS | 40 | 80 | 18 | 1.1 | 24, 650 | 15, 300 |
| 1726308-2RS | 40 | 90 | 23 | 1.5 | 36, 125 | 21, 250 |
| 1726209-2RS | 45 | 85 | 19 | 1.1 | 26, 350 | 17, 340 |
| 1726309-2RS | 45 | 100 | 25 | 1.5 | 45, 050 | 26, 775 |
| 1726210-2RS | 50 | 90 | 20 | 1.1 | 31, 025 | 20, 400 |
| 1726310-2RS | 50 | 110 | 27 | 2 | 52, 700 | 32, 300 |
| বিয়ারিং ঢোকান: CSA200 | ||||||||||||
| বিয়ারিং নং | বোর ডায়ম (ডি) | মাত্রা (মিমি) | গতিশীল লোড | স্থির লোড | ||||||||
| (মিমি) | D | B | L | C | N | G | ডিএস | K | W | রেটিং (KN) | রেটিং (KN) | |
| CSA201 | 12 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA201-8 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA202 | 15 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA202-9 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA202-10 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA203 | 17 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 |
| CSA203-11 | 40 | 19.1 | 28.6 | 12 | 6 | 5 | M6*0.75 | 13.5 | 28.5 | 7.84 | 3.58 | |
| CSA204 | 20 | 47 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 33.3 | 10.37 | 5.04 |
| CSA204-12 | 47 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 33.3 | 10.37 | 5.04 | |
| CSA205 | 25 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 |
| CSA205-14 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA205-15 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA205-16 | 52 | 21.5 | 31 | 15 | 7.5 | 5 | M6*0.75 | 13.5 | 38.1 | 11.31 | 5.97 | |
| CSA206 | 30 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 |
| CSA206-17 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA206-18 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA206-19 | 62 | 23.8 | 35.7 | 16 | 8 | 6 | M6*0.75 | 15.9 | 44.5 | 15.73 | 8.64 | |
| CSA207 | 35 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 |
| CSA207-20 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-21 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-22 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA207-23 | 72 | 25.4 | 38.9 | 19 | 9.5 | 6.5 | M8*1.0 | 17.5 | 55.6 | 20.83 | 11.68 | |
| CSA208 | 40 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 |
| CSA208-24 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 | |
| CSA208-25 | 80 | 30.2 | 43.7 | 22 | 11 | 6.5 | M8*1.0 | 18.3 | 60.3 | 23.55 | 13.6 | |
| CSA209 | 45 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 |
| CSA209-26 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| CSA209-27 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| SA209-28 | 85 | 30.2 | 43.7 | 19 | 9.5 | 6.5 | M8*1.0 | 18.3 | 63.5 | 26.44 | 19.56 | |
| CSA210 | 50 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 |
| CSA210-29 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-30 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-31 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA210-32 | 90 | 30.2 | 43.7 | 20 | 10 | 6.5 | M10*1.25 | 18.3 | 69.9 | 30.01 | 22.53 | |
| CSA211 | 55 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 |
| CSA211-32 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-33 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-34 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA211-35 | 100 | 32.5 | 48.4 | 21 | 10.5 | 8 | M10*1.25 | 20.7 | 76.2 | 32.39 | 24 | |
| CSA212 | 60 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 |
| CSA212-36 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-37 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-38 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| CSA212-39 | 110 | 37.1 | 53.1 | 22 | 11 | 8 | M10*1.25 | 22.3 | 84.2 | 35.28 | 26.18 | |
| বিয়ারিং ঢোকান: CSB200 | ||||||||||
| বিয়ারিং নং | বোর ডায়ম (ডি) | মাত্রা (মিমি) | গতিশীল লোড | স্থির লোড | ||||||
| (মিমি) | D | B | C | N | M | G | ডিএস | রেটিং (KN) | রেটিং (KN) | |
| CSB201 | 12 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB201-8 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB202 | 15 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB202-9 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB202-10 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB203 | 17 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 |
| CSB203-11 | 40 | 22 | 12 | 6 | 16 | 4.5 | M5*0.8 | 7.82 | 3.5 | |
| CSB204 | 20 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6*0.75 | 10.37 | 5.04 |
| CSB204-12 | 47 | 25 | 14 | 7 | 18 | 4.5 | M6*0.75 | 10.37 | 5.04 | |
| CSB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 |
| CSB205-14 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB205-15 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB205-16 | 52 | 27 | 15 | 7.5 | 19.5 | 5 | M6*0.75 | 11.31 | 5.97 | |
| CSB206 | 30 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 |
| CSB206-17 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB206-18 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB206-19 | 62 | 30 | 16 | 8 | 22 | 5.5 | M6*0.75 | 15.73 | 8.64 | |
| CSB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 |
| CSB207-20 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-21 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-22 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB207-23 | 72 | 32 | 17 | 8.5 | 23.5 | 6 | M8*1.0 | 20.83 | 11.68 | |
| CSB208 | 40 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 |
| CSB208-24 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 | |
| CSB208-25 | 80 | 34 | 18 | 9 | 25 | 8 | M8*1.0 | 23.55 | 13.6 | |
| CSB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 |
| CSB209-26 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB209-27 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB209-28 | 85 | 41.2 | 19 | 10.2 | 31 | 8 | M8*1.0 | 26.44 | 19.56 | |
| CSB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 |
| CSB210-29 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-30 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-31 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB210-32 | 90 | 43.5 | 20 | 10.9 | 32.6 | 9 | M8*1.0 | 30.01 | 22.53 | |
| CSB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 |
| CSB211-32 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-33 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-34 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB211-35 | 100 | 45.3 | 21 | 11.8 | 33.5 | 10 | M10*1.25 | 32.39 | 24 | |
| CSB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 |
| CSB212-36 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-37 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-38 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
| CSB212-39 | 110 | 53.7 | 22 | 14.9 | 38.8 | 10 | M10*1.25 | 35.28 | 26.18 | |
কোর সেলিং পয়েন্ট
- স্ব-সারিবদ্ধ নকশা খাদ মিসলাইনমেন্ট মিটমাট করা
- কারখানা প্রাক লুব্রিকেটেড এবং সুবিধার জন্য সিল
- একাধিক লকিং পদ্ধতি সহ সহজ ইনস্টলেশন
- বেশিরভাগ পরিস্থিতিতে রক্ষণাবেক্ষণ-মুক্ত অপারেশন
- আকার এবং প্রকারের বিস্তৃত পরিসরে উপলব্ধ
- প্রধান বিশ্ব ব্র্যান্ডের সাথে সম্পূর্ণভাবে বিনিময়যোগ্য
বিয়ারিং অ্যাপ্লিকেশন
সন্নিবেশ বিয়ারিং ব্যাপকভাবে কৃষি যন্ত্রপাতি, পরিবাহক, টেক্সটাইল মেশিন, প্যাকেজিং সরঞ্জাম, বায়ুচলাচল সিস্টেম, খাদ্য প্রক্রিয়াকরণ যন্ত্রপাতি, এবং নির্মাণ সরঞ্জাম ব্যবহৃত হয়। ক্ষয়কারী, স্যাঁতসেঁতে বা ধূলিময় সেটিংসে নির্ভরযোগ্যভাবে কাজ করার ক্ষমতার কারণে তারা চ্যালেঞ্জিং অপারেটিং অবস্থার জন্য উপযুক্ত।
গুণমানের নিশ্চয়তা
BMT কোম্পানি ISO 9001:2015 মানের সিস্টেমের অধীনে সমস্ত ইনসার্ট বিয়ারিং তৈরি করে। সুসংগত এবং উচ্চ-পারফরম্যান্স আউটপুট নিশ্চিত করতে প্রতিটি বিয়ারিংয়ের উৎপাদনে কঠোর সহনশীলতা নিয়ন্ত্রণ, অত্যাধুনিক সিলিং প্রযুক্তি এবং প্রিমিয়াম লুব্রিকেশন ব্যবহার করা হয়। কারখানা ছাড়ার আগে প্রতিটি বিয়ারিং চাক্ষুষ পরিদর্শন, ঘূর্ণন পরীক্ষা, এবং মাত্রিক যাচাইকরণের মধ্য দিয়ে যায়।
গ্রাহক উদ্বেগ
ক্রেতারা হাউজিং সামঞ্জস্য, ইনস্টলেশন অসুবিধা, বা কঠিন পরিস্থিতিতে নির্ভরযোগ্যতা সম্পর্কে উদ্বিগ্ন হতে পারে। BMT কোম্পানি বেশিরভাগ বালিশ ব্লক এবং ফ্ল্যাঞ্জড হাউজিংয়ের সাথে সামঞ্জস্যপূর্ণ প্রমিত ইনসার্ট বিয়ারিং প্রদান করে, বিস্তারিত ফিটিং গাইড সরবরাহ করে এবং যেকোন ব্যবহারের প্রশ্নগুলির জন্য প্রযুক্তিগত সহায়তা প্রদান করে এই উদ্বেগের সমাধান করে।
প্রযুক্তিগত পরামিতি
| বিয়ারিং নম্বর | ভিতরের ব্যাস (মিমি) | বাইরের ব্যাস (মিমি) | প্রস্থ (মিমি) | লকিং পদ্ধতি | ডায়নামিক লোড রেটিং (N) | স্ট্যাটিক লোড রেটিং (N) |
| UC201 | 12 | 47 | 31 | স্ক্রু সেট করুন | 12800 | 6600 |
| UC202 | 15 | 47 | 31 | স্ক্রু সেট করুন | 13200 | 7000 |
| UC203 | 17 | 47 | 31 | স্ক্রু সেট করুন | 13600 | 7200 |
| UC204 | 20 | 47 | 31 | স্ক্রু সেট করুন | 14000 | 7600 |
| UC205 | 25 | 52 | 34 | স্ক্রু সেট করুন | 17500 | 9500 |
| UC206 | 30 | 62 | 38 | স্ক্রু সেট করুন | 19500 | 11200 |
| UC207 | 35 | 72 | 42 | স্ক্রু সেট করুন | 26000 | 15500 |
| UC208 | 40 | 80 | 49 | স্ক্রু সেট করুন | 30000 | 18000 |
| UC209 | 45 | 85 | 49 | স্ক্রু সেট করুন | 34000 | 20500 |
| UC210 | 50 | 90 | 51 | স্ক্রু সেট করুন | 37500 | 22500 |
পণ্যের সুবিধা
- উভয় দিক থেকে রেডিয়াল এবং অক্ষীয় লোডের জন্য উপযুক্ত
- চরম তাপমাত্রা এবং পরিস্থিতিতে কাজ করার জন্য ডিজাইন করা হয়েছে
- সহজ লকিং পদ্ধতি ইনস্টলেশনের সময় কমিয়ে দেয়
- সুনির্দিষ্ট অভ্যন্তরীণ রেস মেশিনিংয়ের কারণে উচ্চ-গতির ক্ষমতা
- বর্ধিত পরিষেবা ব্যবধান সহ খরচ কার্যকর সমাধান
কর্মক্ষমতা জন্য ব্যবহারের নির্দেশাবলী
1. সঠিক ভারবহন এবং ডান খাদ আকার নিশ্চিত করুন.
2. ইনস্টলেশনের আগে খাদ এবং হাউজিং পরিষ্কার করুন।
3. মৃদু চাপ দিয়ে হাউজিং-এ ইনসার্ট বিয়ারিং মাউন্ট করুন।
4. খাদ সারিবদ্ধ, এটি ভারবহন সন্নিবেশ.
5. সুরক্ষিতভাবে সেট স্ক্রু বা লকিং কলার শক্ত করুন।
6. মসৃণ অপারেশন নিশ্চিত করতে হাত দ্বারা ঘোরান।
7. ব্যবহারের অবস্থার উপর নির্ভর করে পুনরায় তৈলাক্তকরণের জন্য পর্যায়ক্রমে পরীক্ষা করুন।
BMT সম্পর্কে
BMT কোম্পানির Insert Bearings একাধিক শিল্পে নির্ভরযোগ্য, রক্ষণাবেক্ষণ-বান্ধব কর্মক্ষমতা প্রদান করে। এগুলি সহজ ইনস্টলেশন, চমৎকার সিলিং, এবং দীর্ঘ কর্মক্ষম জীবন সহ সামঞ্জস্যপূর্ণ এবং নির্ভরযোগ্য অপারেশনের জন্য প্রয়োজনীয় সরঞ্জামগুলির জন্য একটি উচ্চতর পছন্দ। কৃষি, প্যাকেজিং বা উত্পাদনে ব্যবহৃত হোক না কেন, এটি আপনার কর্মক্ষমতা চাহিদা মেটাতে পারে, এর মধ্যে ডাউনটাইম কমিয়ে এবং সর্বোচ্চ মান। BMT নির্ভুল বিয়ারিং চয়ন করুন এবং ব্যতিক্রমী কর্মক্ষমতা সহ আপনার সরঞ্জাম অফার করুন।
হট ট্যাগ: বিয়ারিং ঢোকান
অনুসন্ধান পাঠান
যোগাযোগের তথ্য
-
ঠিকানা
নং 183, লংফেং, ঝাংটিং শিল্প অঞ্চলের পশ্চিম, ইউয়াও, নিংবো, চীন
-
টেলিফোন
-
ই-মেইল
ইন্ডাস্ট্রিয়াল বিয়ারিং, ডিপ গ্রুভ বল বিয়ারিং, টেপার রোলার বিয়ারিং এবং আরও অনেক কিছুর জন্য স্পেসিফিকেশন জমা দিন। BMT-এর দল টেকসই বিয়ারিংয়ের জন্য প্রতিযোগিতামূলক মূল্যের সাথে 24 ঘন্টার মধ্যে প্রতিক্রিয়া জানায়।
